When supplied as a fully-assembled unit, this fully-backlit panel will include all of the switches, the vinyl switch caps, the hinged gang-plate, black mounting screws, two pull on/push off switches, the Parking Brake knob, and the Pilot Air knob.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied. As with all of our other panels, this panel can be supplied with either cool-white or warm white LEDs. If the locking-lever switches are not required, please let us know.

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the switches (both locking-lever and standard toggle versions), the hinged gang-plate, black mounting screws, connection wires for the 12V backlighting, two pull on/push off switches, the Parking Brake knob (not shown), and the Pilot Air knob.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied. As with all of our other panels, this panel can be supplied with either cool-white or warm white LEDs. If the locking-lever switches are not required, please let us know.

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the switches (both locking-lever and standard toggle versions), the hinged gang-plate, the vinyl switch caps, black mounting screws, connection wires for the 12V backlighting, two pull on/push off switches, the Pilot Air knob and the Parking Brake knob (not shown).

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the switches, the vinyl switch caps, the pushbuttons, a dummy circuit breaker, black mounting screws, a pull on/push off switch, the Defrost Air Knob, a wired pushbutton for gear indication, as well as the landing gear lever complete with embedded LED and wiring for illumination.  The gear lever is spring loaded and you must pull the knob out before it can be moved from its current position; when it gets to the new position, it springs back into place. A red LED is embedded in the  gear knob to allow for illumination during gear transit, and a pair of connection wires are also included.

Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied. As with all of our other panels, this panel can be supplied with either cool-white or warm white LEDs. If the locking-lever switches are not required, please let us know.

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the switches (both locking-lever and standard toggle versions), the pushbuttons, a dummy circuit breaker, black mounting screws, connection wires for the 12V backlighting, a pull on/push off switch, the Defrost Air Knob, a wired pushbutton for gear indication, as well as the landing gear lever complete with embedded LED and wiring for illumination.  Please note that there is NO red indicator on top of the gear knob. The gear lever is spring-loaded and you must pull the knob out before it can be moved from its current position; when it gets to the new position, it springs back into place. A red LED is embedded inside the  gear knob to allow for illumination during gear transit. We also include a Lamp Test circuit board that comes pre-wired with connections to the Gear Indicator Korry, the Gear Knob illumination LED, and the HD LT Test pushbutton.
Please note that there is no controller included with this panel. This is not a plug and play item; and apart from the wiring mentioned above, no additional wiring is supplied. There is no interface supplied.

To download the files for the panel shape and MIP cutout, click here.

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the switches, the vinyl switch caps, black mounting screws, a dummy gauge (not shown here), a pull on/push off switch, the Cabin Air knob, and knobs for the Cabin Temp, Cabin Temp Mode, and Fire Det & Fire Ext.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied. As with all of our other panels, this panel can be supplied with either cool-white or warm white LEDs. If the locking-lever switches are not required, please let us know.

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the switches (both the locking-lever and standard toggle versions), the black mounting screws, connection wires for the 12V backlighting, a dummy gauge, a pull on/push off switch, the Cabin Air knob, and knobs for the Cabin Temp, Cabin Temp Mode, and Fire Det & Fire Extinguisher. Please note that the hole for the gauge is suitable for a GSA-057 gauge from Flight Illusion.

To download the files for the panel shape and MIP cutout, click here.

The mounting holes for the gauges in this fully-backlit panel are suitable for use with either our standard dummy gauges or with the GSA-057 gauges from Flight Illusion. All of the black mounting screws are supplied (including for the gauges), as is the large toggle switch, the pull on/push off switch, and the Co-Pilot Air knob.

When supplied as an assembled unit, this fully-backlit panel will include all of the switches, the vinyl switch caps, the illuminated NO TXFR pushbuttons (which require 2V for operation), and all of the black mounting screws (including for the gauges).The gauge holes are suitable for use with either our own standard dummy fuel gauges or the GSA-061 gauges from Flight Illusion. A pair of our dummy gauges are included with this panel.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied. As with all of our other panels, these panels can be supplied with either cool-white or warm white LEDs. If the locking-lever switches are not required, please let us know. These panels can also be purchased separately.

When supplied as a fully-assembled unit, this module includes both R423 versions of the B200 Fuel Panel and B200 Fuel Circuit Breaker Panel, including the switches (both the locking-lever and standard toggle versions), two dummy Fuel gauges, two illuminated Transfer pushbuttons, the missile covers, connection wires for the 12V backlighting, and a full set of dummy circuit breakers. The holes for the fuel gauges are designed to fit the GSA-061 gauges from Flight Illusion. For a better image of the Fuel Module's housing, please refer to the images of our B350 Fuel Module.

To download the files for the panel shape and MIP cutout, click here.

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the dummy circuit breakers and decals, the black mounting screws, two large toggle switches, and the missile covers.

When supplied as a fully-assembled unit, this fully-backlit panel will include the momentary pushbuttons, all of the mounting screws (including for the gauges). The gauge holes are suitable for use with either our own standard dummy gauges or with the GSA-057 gauges from Flight Illusion. A pair of our dummy gauges is included with this panel.

When supplied as a fully-assembled unit, this fully-backlit panel will include all of the potentiometers, the large rocker switch, the rotary switch, all of the engraved knobs, and all of the black mounting screws.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

The Glareshield Annunciator Panel is shipped complete with a fully-populated LED circuit board, although there is no interface board supplied. There is a multi-Pin header on the rear of the LED circuit board to allow you to connect this to your own connector/controller board(s) or you can purchase one of our annunciator controller boards here.

The annunciator panel is supplied with our standard legends and the appropriately coloured LEDs, although these can be customised if necessary.

Our Main Annunciator Panel is shipped complete with a fully-populated LED circuit board, although there is no interface board supplied. There is a multi-Pin header on the rear of the LED circuit board to allow you to connect this to your own connector/controller board(s) or you can purchase one of our annunciator controller boards here.

The annunciator panel is supplied with our standard legends and the appropriately coloured LEDs, although these can be customised if necessary.

This panel will be shipped as a fully assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplier.

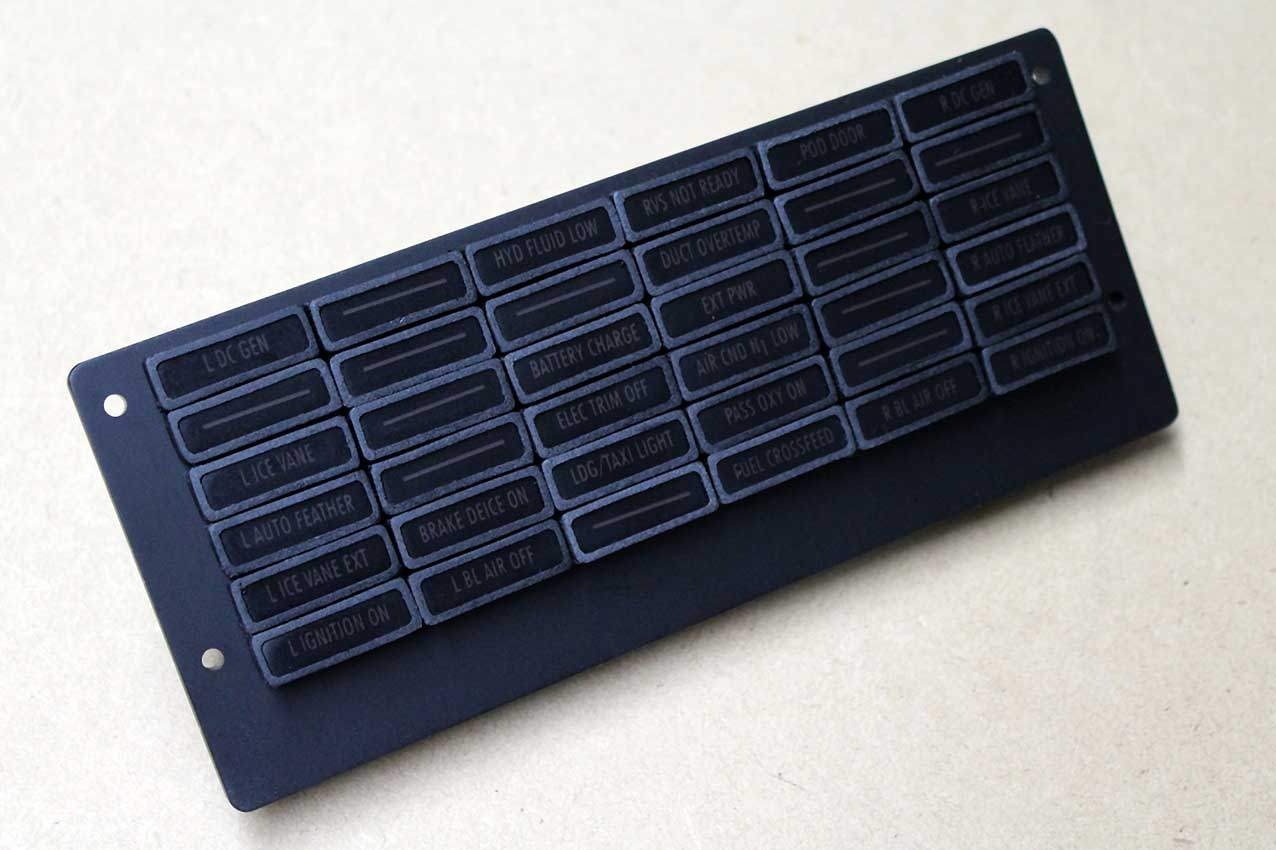

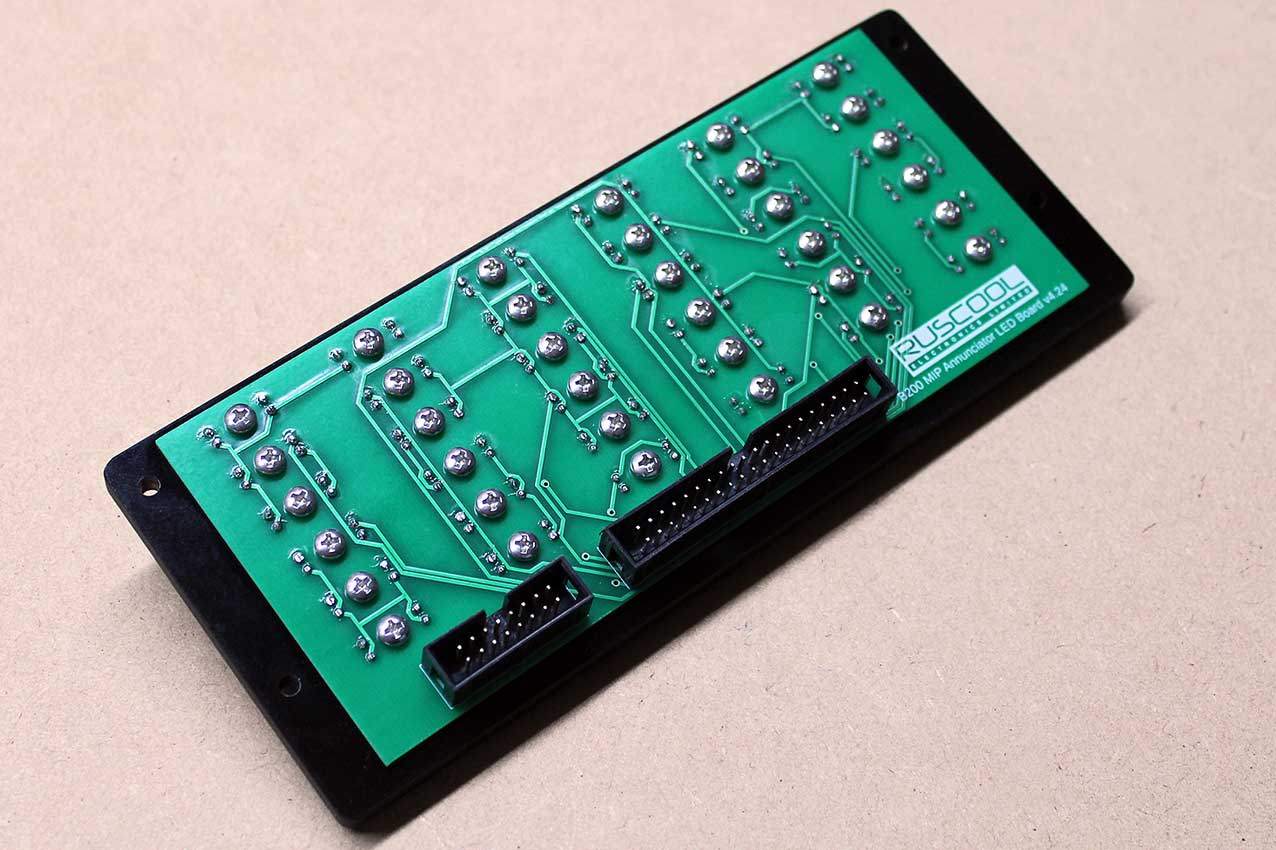

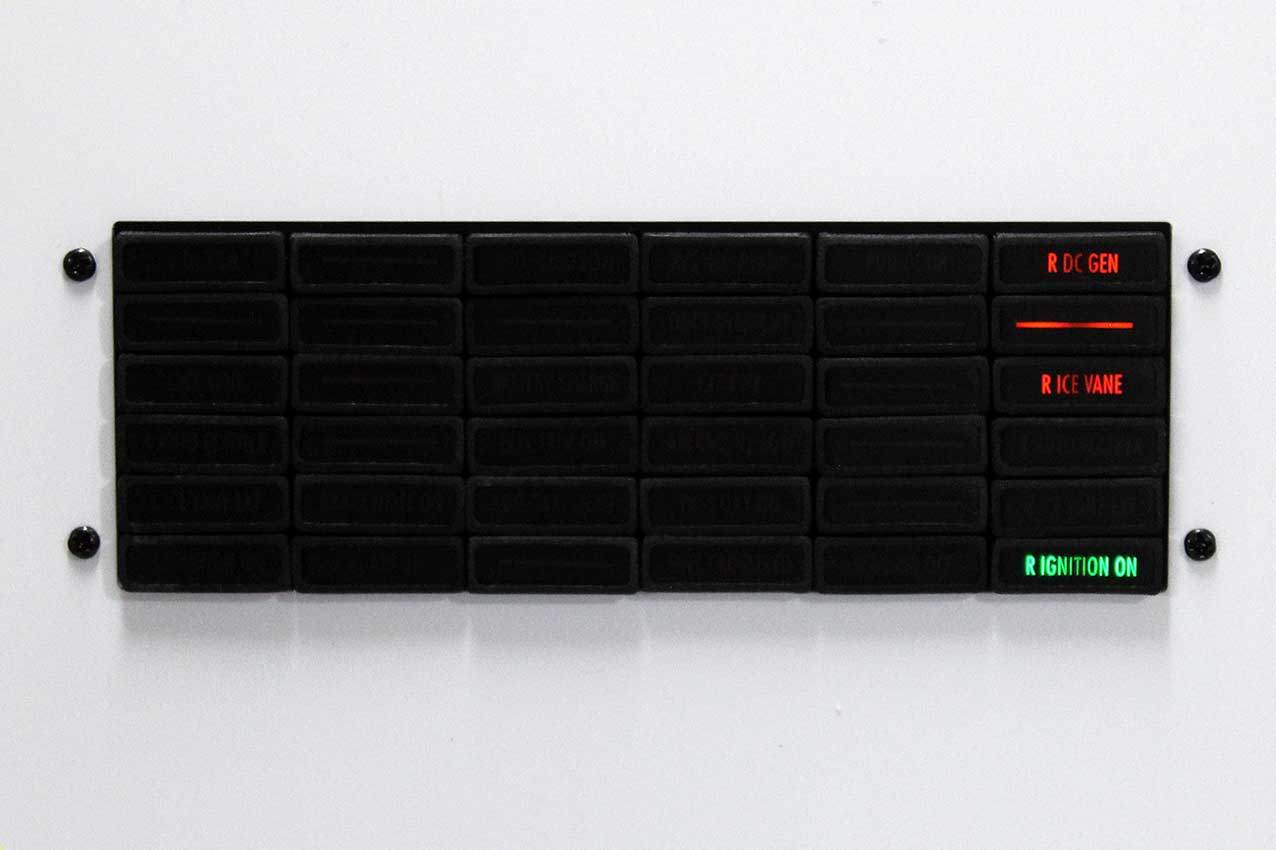

This MIP Annunciator Panel is shipped complete with a fully populated LED circuit board, although there is no interface board supplied. There are two box headers on the rear of the LED circuit board to allow you to connect this to your own connector/controller board(s) or you can purchase one of out annunciator controller boards here..  We supply two 500mm lenghts of ribbon cable. Each annunciator is a separate item housed in an individual bezel, which allows them to be altered/re-arranged at a later date if required. Unlike out previous annunciator panels, this version is designed to mount onto the rear of the MIP, not the front.  This annunciator panel is supplied with our standard legends and the appropriately coloured LEDs, although these can be customised if necessary.

To download the files for the panel shape and MIP cutout, click here.

The mounting holes for the gauges in this panel are suitable for use with either our standard dummy gauges or the GSA-057 gauges from Flight Illusion. All of the black mounting screws are supplied (including those which are required for the gauges). A set of our dummy gauges is included with the panel.

This panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

When supplied as a fully-assembled unit, this panel includes the three dummy gauges (which can be easily disassembled if you intend to make them operational), and all of the mounting screws. The mounting holes for the gauges in this panel are also suitable for use with the GSA-057 gauges from Flight Illusion.

To download the files for the panel shape and MIP cutout, click here.

This panel is supplied with all of the dummy circuit breakers fitted and we also apply the vinyl labels.  We currently do not offer a backlit version of this panel, although if this is a requirement for your build, please ask and we’ll see what we can do!

When supplied as a fully-assembled unit, this fully-backlit panel will include a dummy gauge, two encoders, two knobs, and the four black mounting screws.

When supplied as a fully-assembled unit, this fully-backlit panel will include four encoders, four knobs, three toggle switches and the black mounting screws.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

To download the files for the panel shape and MIP cutout, click here.

If purchased complete with parts, this panel will be shipped as a fully-assembled unit. Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied. As with all of our other panels, this panel can be supplied with either cool-white or warm white LEDs.

This fully-backlit panel will be shipped fully assembled - as it appears in the above photos - and will include the red and black pushbuttons, a dummy microphone, a dummy gauge, connection wires for the 12V backlighting, a stereo phone socket, and four dummy Dzus fasteners.

To download the files for the panel shape and MIP cutout, click here.

When supplied as a fully-assembled unit, this fully-backlit panel will include six illuminated pushbuttons with legends, and the black mounting screws.  Please note that there is no controller included with this panel. This is not a plug and play item; no wiring or interface is supplied.

King Air Construction Drawings

Construction Plans - PDF Only Version - US$22-00

Construction Plans - PDF & DXF Version - US$45-00
